ELZINC® METAL ROOF CLADDING


Founded upon a constant strive to improve and satisfy the market´s most demanding requirements, elZinc® is offered a wide range of roofing and cladding products and finishes, and is present in more than 40 countries.

elZinc® is a premium product, irrespective of its final application. The expectation is to achieve, in terms of product and service, the highest levels of quality and durability, exceeding those of other substitute materials.  This is a consequence of the product´s aesthetic, constructive, and future maintenance benefits, in projects for which it is chosen.

Featured
Zinc Roofing in Cold Climates: Design and Durability
Zinc Roofing in Cold Climates: Design and Durability

Zinc's impermeability makes it impervious to the freeze-thaw cycles that can damage other roofing materials. Once installed, zinc remains unfazed by low temperatures and enjoys a long life. Even when snow accumulates on zinc roofs, the surface finish remains largely unaffected. However, after particularly snowy winters, a temporary white discoloration may appear as the snow melts and reveals any retained meltwater. This discolouration gradually fades back to the normal color of zinc, although this effect is absent in finishes like elZinc Rainbow® or elZinc Advance®.

Which installation technique do you prefer for your zinc facade?
Which installation technique do you prefer for your zinc facade?

elZinc® is a premium product, irrespective of its final application. The expectation is to achieve, in terms of product and service, the highest levels of quality and durability, exceeding those of other substitute materials.  This is a consequence of the product’s aesthetic, constructive, and future maintenance benefits, in projects for which it is chosen. Which installation technique do you prefer when it comes to zinc facade?

Curtin University: Innovate with elZinc
Curtin University: Innovate with elZinc

Renowned architects John Wardle Architects, with extensive experience in using zinc, faced a unique challenge in this project. They required custom-developed perforated zinc for the envisioned screens.

elZinc, supplying 1.5mm thick elZinc Slate pre-patinated zinc coils, collaborated with CASA, their Australian representative and fabrication company, to craft over 1,250 individual zinc screens. These screens, folded into 11 different profiles, included the fabrication of special screen supports.

elZinc Produces Its Own Energy
elZinc Produces Its Own Energy

elZinc is excited to announce the launch of one of the largest photovoltaic plants in Asturias, Spain. This solar generation facility, initially boasting a peak power capacity of 2.9 megawatts, will be comprised of over 6,500 solar panels covering an area nearly equivalent to two football fields, totaling 13,000 square meters, installed atop our factory in Asturias.

This is an extract from the show The World´s Most Extraordinary Homes, all images are property of the BBC and Netflix.

Facade Cladding

Traditional systems are fully supported metal coverings that use tried and tested hard metal seaming techniques which have been used for centuries.  The double lock standing seam, batten roll, angle seam and flat lock cladding fall into this category.  The complete elZinc® range of finishes can be installed using these common systems:


Flat Lock Shingles

  • Traditional cladding system using interlocking panels.

  • Principally used in façade cladding, on flat or curved areas.

  • Weather-tight from 25º of pitch and above if used in roofing.

  • Attractive design layouts complement different architectural styles.


Standing Seam

  • Zinc between 0.65 and 0.8mm for ease of hand forming on site.

  • Indirect fixing using stainless steel clips hidden by overlapping panels.

  • Subtle quilting introduces a visual ‘vibration’ and ‘energy’ to the building.

  • elZinc® panels can be curved, tapered, and formed to almost any geometric design.

elZinc® Shingles

  • Pre-fabricated elements directly fixed to substrate.

  • For wall cladding and roofing (subject to roof pitch).

  • 4 different designs for 4 different styles. Square, rhomboid, rounded fish scale, and pointed fish scaled.

  • Easy to install – can be cut, edged and folded as required.

Finishes

elZinc® is available in a variety of finishes that satisfy both architectural and engineering requirements.


Asthetic Finishes

For design.

  • elZinc Rainbow® - Gold, green, red, brown, blue, or ebony.

  • elZinc® Natural - Timeless classic

  • elZinc Slate® - Everlasting beauty

  • elZinc Graphite® - Elegant touch

  • elZinc Crystal® - Changing reflections

  • elZinc Oliva® - Natural tendency

  • elZinc Lava® - Metal with Character


Technical Finishes

For function.

  • elZinc Advance®

  • elZinc Protect+ ®

  • elZinc® for ornamentation and drawing

Get elZinc® specifications, details, and drawings right here.

Rainwater Systems

elZinc® proudly offers a range of rainwater drainage solutions which are available in five different finishes and respond to a wide range of technical and aesthetic requirements. The gutters and accessories in this range, in addition to the complementary profiles and roof flashings, are produced using elZinc® zinc titanium, which is manufactured in accordance with the requirements of standard EN988.

These elements are suitable for all weather conditions and their high level of resistance to corrosion helps to ensure the longevity and integrity of the buildings that they are fitted on.

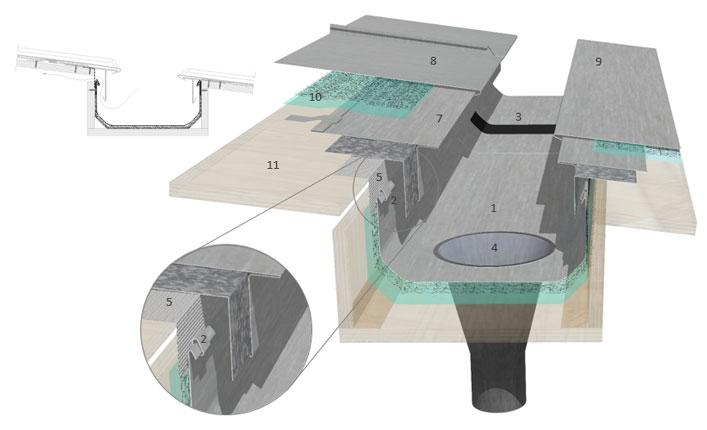

Parapat and Internal Gutters

  • Long lasting and maintenance free

  • Lightweight and sustainable

  • Matches the elZinc® roof

  • Must be carefully designed and installed


Eaves Gutters

  • Attractive designs in half round, box section and cornice styles

  • Long lasting, maintenance free, and fully recyclable

  • Does not discolour due to UV radiation

  • Available in the complete range of elZinc® finishes

Metal Roofing Systems

Traditional roofing systems are fully supported metal coverings that employ tried and tested hard metal seaming techniques which have been used for centuries.  The double lock standing seam, batten roll, angle seam and flat lock cladding fall into this category.  The complete elZinc® range of finishes can be installed using these systems.

elZinc® is an excellent roofing and cladding material which will give long and almost maintenance-free service.

elZinc® Tiles

  • Pre-fabricated elements directly fixed to substrate.

  • Require fully supporting substrate.

  • 4 different designs

  • Easy to install – can be cut, edged and folded as required

Double Lock Standing Seam

  • Proven, versatile system for roofing flat, curved and ‘free-form’ roofs.

  • Weather-tight down to 7º of pitch, 3º if seams are sealed..

  • Discrete joints give a light, elegant appearance.

  • Efficient installation with modern profiling and seaming machines

Why pay more? Request a sample here.

elZinc® Project Gallery
