Tac Thermal Spacer

TAC THERMAL CLIPS

The TAC Thermal Spacer is an affordable solution to effectively reduce thermal-bridging by at least 97% for rain-screen exterior wall systems. Minimum 97% efficient, easy to install, and building code compliant

TAC Aluminum

CLIP MATERIAL: CAST ALUMINUM

COMBUSTIBILITY: NON - COMBUSTIBLE

GIRT ORIENTATION: BOTH HORIZONTAL AND VERTICAL

CLIP DEPTH: 3", 4", 5", 6"

MAXIUMUM WIND LOAD: 60 PSF (32"x26" clip spacing)

THERMAL PERFORMANCE: 21.3 R-Value

TAC GFRC (Glass Fibre Reinforced Clip)

CLIP MATERIAL: REINFORCED GLASS FIBRE

COMBUSTIBILITY: COMBUSTIBLE

GIRT ORIENTATION: BOTH HORIZONTAL AND VERTICAL

CLIP DEPTH: 3", 4", 5", 6"

MAXIUMUM WIND LOAD: 60 PSF (32"x26" clip spacing)

THERMAL PERFORMANCE: 27.7 R-Value

TAC 2.1 Steel

CLIP MATERIAL: GALVANIZED STEEL

COMBUSTIBILITY: NON-COMBUSTIBLE

GIRT ORIENTATION: BOTH HORIZONTAL AND VERTICAL

CLIP DEPTH: 4” to 6” (with girt)"

THERMAL PERFORMANCE: 23.1 R-Value

Get TAC Thermal Spacer specifications, details, and drawings right here.

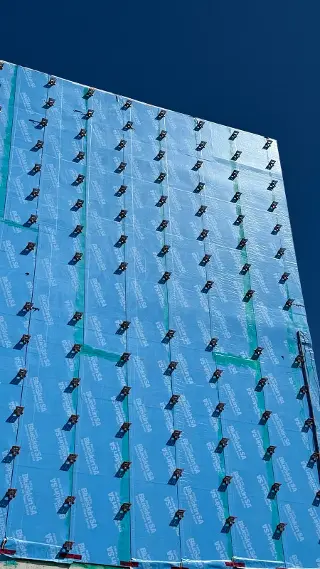

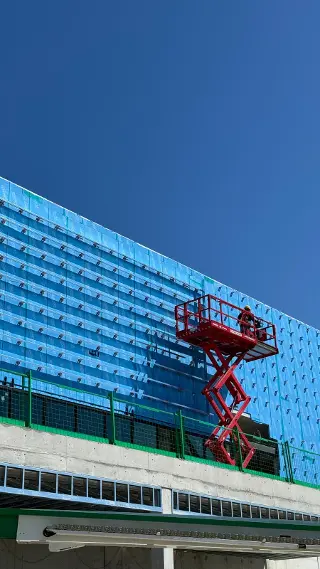

Project Gallery
